Electrical Hydraulic Mill Roll Stand For Cardboard Production Line

Name: Electrical Hydraulic Mill Roll Stand For Cardboard Production Line
Brand: RINO
Price: 1 USD

Electrical Hydraulic Mill Roll Stand For Cardboard Production Line Manufactures

Brand Name : RINO

Model Number : HE-M1600

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Month

Delivery Time : 40-60 Working Days After Deposit

Packaging Details : Wrapped with film or in wooden case

Name : Corrugated Board Production Line 1600 Electrical Shaft-Less Mill Roll Stand

Maximum diameter : φ1400mm

Range of width : 1600mm

Voltage : 220V/380V

Usage : Kraft paper holder

Color : Customized

Type : Electrical

Loading Capacity : 1.5-2t/side

Contact Now

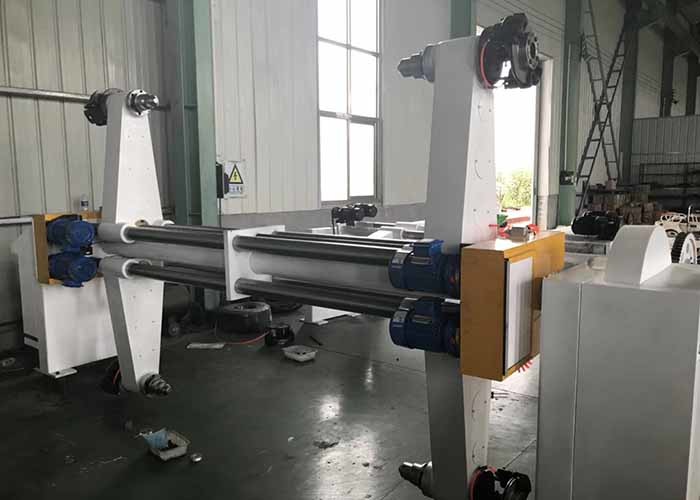

Corrugated Board Production Line 1600 Electrical Shaft Less Mill Roll Stand

Electrical Shaft-Less Mill Roll Stand Function

1. Reel paper life-lower, clamp, loossen, movement, contraposition operated by motorize.

2. Reel paper strain control by manual brakes.

3. Max diameter of reel paper:1500mm

4. Width of paper:600-1600mm, 600-1800mm, 600-2200mm.

5. Installment power: 6kw

6. The when clamp moving up and down selects cycloid motor, and the thick paper used for covering arm overload or touch the ground. It will be effective to safeguard th machinery not to be damaged

Electrical Shaft-Less Mill Roll Stand Parameter

Width	1400-2500mm
Paper roll dia.	φ350-φ1500mm
Single side hold weight	2000kg
Pressure	0.6-0.9Mpa
Total power	4.0kw
Voltage	3ph380v 50Hz

Machine Introduction

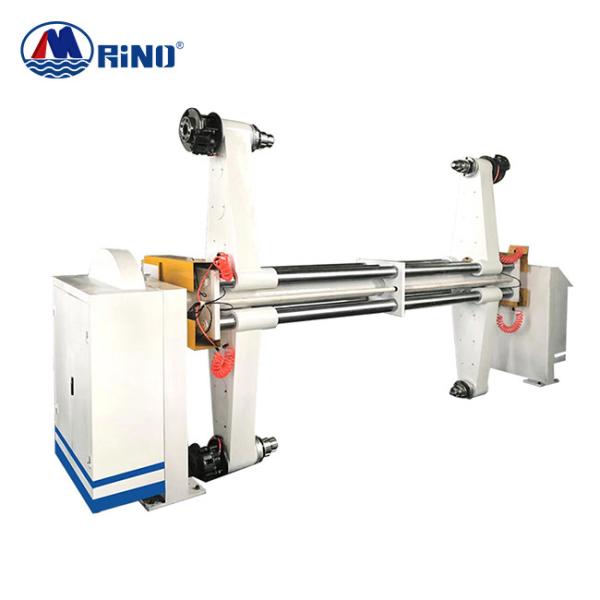

Electrical Hydraulic Mill Roll Stand For Cardboard Production Line

1. Electrical shaft-less mill roll stand, which is used in corrugated cardboard production line, its function is supporting the paper mill roll.

2. Symmetrical structure can install two rolls of paper at the same time and continually change paper;

3. Paper roll clamp-loosen, lift-lower, movement, Contraposition, translation ect .operated by electric driven .

4. Maximum diameter:φ1400mm

5. Range of width: 1600mm

6. Pneumatic or Mannual control web tension. Taper centre, stretch centre is optional.
